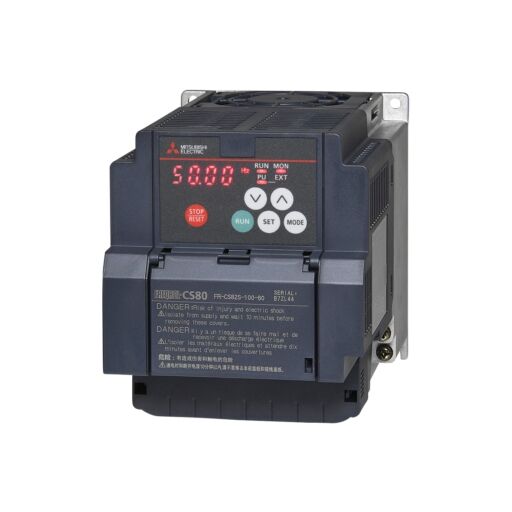

FR-CS82S-100-60 İnverter; Nominal Güç: 2,2kW; 1x200-240V; Nominal Akım:10A; IP20
Kategori
Marka
Stok Kodu
FR-CS82S-100-60
Fiyat
389,00 EUR + KDV
*1.064,24 ₺ den başlayan taksitlerle!
%53 İndirimli
10.311,61 ₺
21.939,60 ₺
FA-Inverter: Inverter
| Series | FR-CS80 SERIES |
|---|---|
| Type | FR-CS82 COMPACT INVERTER |
| Minimum Rated Voltage (V) | 200 |
| Min. Permissible Voltage (V) | 170 |
| Maximum Rated Voltage (V) | 240 |
| Max. Permissible Voltage (V) | 264 |
| Current Type | AC |
| Phases | 1 |
| Rated Output Current ND (A) | 10 |
| Rated Motor Capacity ND (kW) | 2,2 |
| Frequency Range (Hz) | 0,2–400 |
| Control Method | ADVANCED MAGN. FLUX VEC. CTRL |
| Motor Type | INDUCTION MOTOR |
| Integrated EMC Filter | NO |
| Safe Torque Off (STO) | NO |
| Regenerative (4Q) | NO |
| Integrated DC Choke | NO |
| Display | FR-LU08 |
| Display Type | 4 DIGITS LED |
| PLC Function | NO |
| Integrated Digital Inputs | 5 |
| Digital Outputs (Transistor) | 1 |
| Digital Outputs (Relay) | 0 |
| Integrated Analogue Inputs | 2 |
| Integrated Analogue Outputs | 0 |
| IO Type of Terminal Block | SPRING CLAMP |
| Expandable | YES |
| RS-485 | 1 |
| USB | NO |
| Ethernet Port | NO |
| Built-In Network | MODBUS-RTU |
| Leakage Current (mA) | 1 |
| Power Loss ND (W) | 95 |
| Protection Class | IP20 |
Ürün Ebatları ve Ağırlığı
| Depth (mm) | 160 |
|---|---|
| Weight (kg) | 1,4 |
| Width (mm) | 108 |
| Height (mm) | 128 |
Conformity
| CE | COMPLIANT |
|---|---|
| EAC | COMPLIANT |
| UL/cUL | COMPLIANT |
| UKCA | COMPLIANT |
