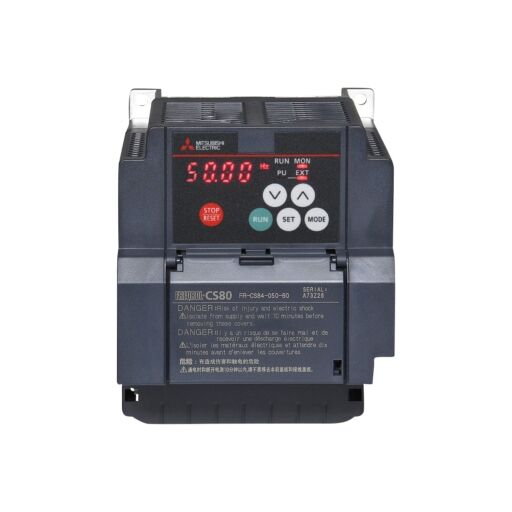

FR-CS84-050-60 İnverter; Nominal Güç: 2,2kW; 3x380-480V; Nominal Akım: 5A; IP20
Kategori
Marka
Stok Kodu
FR-CS84-050-60
Fiyat
395,00 EUR + KDV
*1.080,66 ₺ den başlayan taksitlerle!
%53 İndirimli
10.470,66 ₺
22.278,00 ₺
FA-Inverter: Inverter
| Series | FR-CS80 SERIES |
|---|---|
| Type | FR-CS84 COMPACT INVERTER |
| Minimum Rated Voltage (V) | 380 |
| Min. Permissible Voltage (V) | 323 |
| Maximum Rated Voltage (V) | 480 |
| Max. Permissible Voltage (V) | 550 |
| Current Type | AC |
| Phases | 3 |
| Rated Output Current ND (A) | 5 |
| Rated Motor Capacity ND (kW) | 2,2 |
| Frequency Range (Hz) | 0,2–400 |
| Control Method | ADVANCED MAGN. FLUX VEC. CTRL |
| Motor Type | INDUCTION MOTOR |
| Integrated EMC Filter | NO |
| Safe Torque Off (STO) | NO |
| Regenerative (4Q) | NO |
| Integrated DC Choke | NO |
| Display | FR-LU08 |
| Display Type | 4 DIGITS LED |
| PLC Function | NO |
| Integrated Digital Inputs | 5 |
| Digital Outputs (Transistor) | 1 |
| Digital Outputs (Relay) | 0 |
| Integrated Analogue Inputs | 2 |
| Integrated Analogue Outputs | 0 |
| IO Type of Terminal Block | SPRING CLAMP |
| Expandable | YES |
| RS-485 | 1 |
| USB | NO |
| Ethernet Port | NO |
| Built-In Network | MODBUS-RTU |
| Leakage Current (mA) | 1 |
| Power Loss ND (W) | 75 |
| Protection Class | IP20 |
Ürün Ebatları ve Ağırlığı
| Depth (mm) | 130 |
|---|---|
| Weight (kg) | 0,9 |
| Width (mm) | 108 |
| Height (mm) | 96 |
Conformity
| CE | COMPLIANT |
|---|---|
| EAC | COMPLIANT |
| UL/cUL | COMPLIANT |
| UKCA | COMPLIANT |
